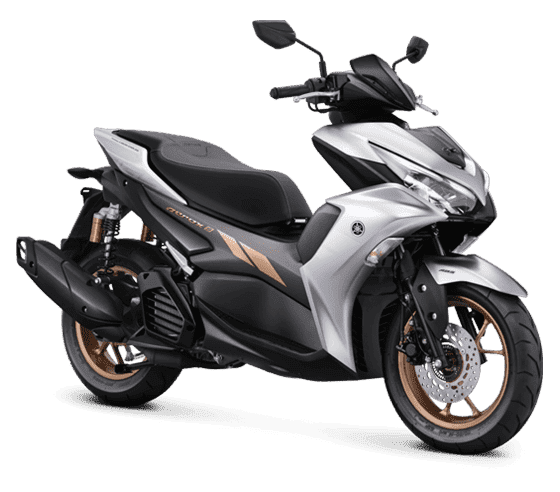

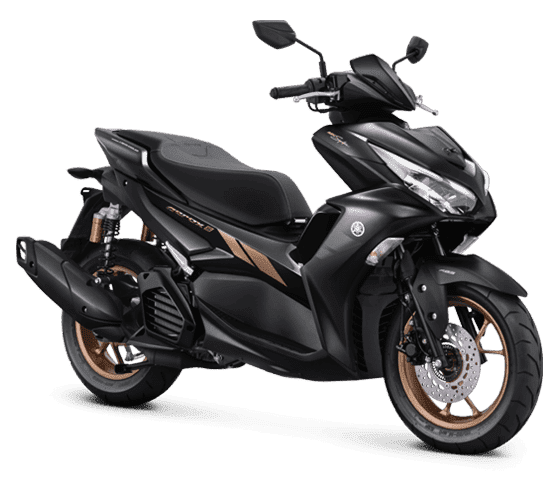

ALL NEW AEROX CONNECTED ABS
All New Aerox ABS Connected ABS
CASH & CREDIT
Syarat: KTP + KK
Proses cepat, DP Bayar Setelah Motor Diterima
| Sistem Starter |
Electric Starter |
| Sistem Pelumasan |
Basah |
| Kapasitas Oli Mesin |
Total – 1,00 L ; Berkala 0,90 L |
| Sistem Bahan Bakar |
FI (Fuel Injection) |
| Tipe Kopling |
Kering, Centrifugal Automatic |
| Tipe Transmisi |
V-belt Automatic |
| Tipe Mesin |
Liquid cooled 4-stroke, SOHC |
| Jumlah/Posisi Silinder |
Single Cylinder |
| Kapasitas Mesin |
155cc |
| Diameter x Langkah |
58,0 mm x 58.7 mm |
| Perbandingan Kompresi |
11.6 : 1 |
| Daya Maksimum |
11.3 kW / 8000 rpm |
| Torsi Maksimum |
13.9Nm / 6500rpm |
| Tipe Rangka |
Underbone |
| Suspensi Depan |
Teleskopik |
| Suspensi Belakang |
Unit Swing |
| Ban Depan |
110/80-14M/C 53P |
| Ban Belakang |
140/70-14M/C 62P |
| Rem Depan |
Disc |
| Rem Belakang |
Drum |
| P x L x T |
1980mm X 700mm X 1150mm |
| Jarak sumbu roda |
1350 mm |
| Jarak terendah ke tanah |
143 mm |
| Tinggi tempat duduk |
790 mm |
| Berat isi |
125 kg (ABS Version), 122 Kg (Standard Version) |
| Kapasitas tangki bensin |
5.5 L |
| Sistem pengapian |
TCI |
| Battery |
YTZ7V (ABS Version), NTZ6V (Standard Version) |
| Tipe Busi |
NGK/CPR8EA-9 |
