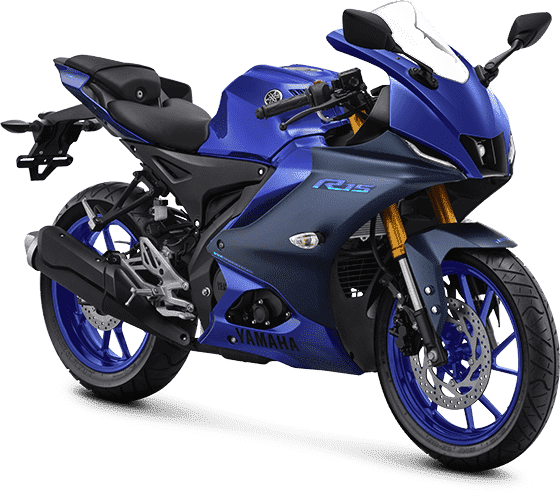

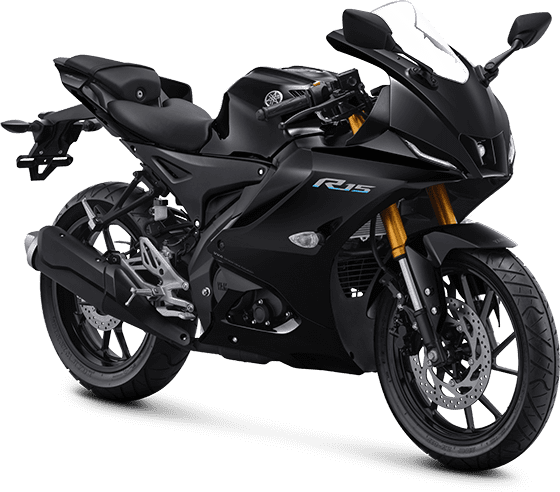

ALL NEW R15 CONNECTED
All New R15 Connected
CASH & CREDIT
Syarat: KTP + KK
DP 6.100.000
Proses cepat 1-2 Hari
DP Bayar saat motor datang
| Tipe Mesin |
Liquid Cooled, 4-Stroke, SOHC, 4 Valve, VVA |
| Jumlah/Posisi Silinder |
Single Cylinder |
| Isi Silinder (CC) |
155.09 cc |
| Diameter x Langkah |
58.0 x 58.7 mm |
| Perbandingan Kompresi |
11.6±0.4 : 1 |
| Daya Maksimum |
14.2 kW / 10000 rpm |
| Torsi Maksimum |
14.7 Nm / 8500 rpm |
| Sistem Starter |
Elektrik Starter |
| Sistem Pelumasan |
Wet Sump |
| Kapasitas Oli Mesin |
Total =1.15L ;Berkala = 0.95 L ;Ganti Filter Oli = 1 L |
| Sistem Bahan Bakar |
Fuel Injection |
| Tipe Kopling |
Multi Wet Clutch |
| Tipe Transmisi |
Manual |
| Pola Pengoperasian Transmisi |
1-N-2-3-4-5-6 |
| Tipe Rangka |
Deltabox |
| Suspensi Depan |
Telescopic Fork (Inverted) |
| Suspensi Belakang |
Link Monoshock |
| Ban Depan |
100/80-17M/C 52P |
| Ban Belakang |
140/70-17M/C 66S |
| Rem Depan |
Disc Brake |
| Rem Belakang |
Disc Brake |
| P X L X T (Length x Width x Height) |
1990 x 725 x 1135 mm |
| Jarak Sumbu Roda |
1325 mm |
| Jarak Terendah Ke Tanah |
170 mm |
| Tinggi Tempat Duduk |
815 mm |
| Berat Isi |
137 Kg (All New R15 Connected), 140 Kg (All New R15M Connected) |
| Kapasitas Tangki Bensin |
11 L |
| Sistem Pengapian |
TCI |
| Battery |
GTZ4V/YTZ4V (All New R15 Connected), YTZ6V (All New R15M Connected) |
| Tipe Busi |
MR8E9 |
